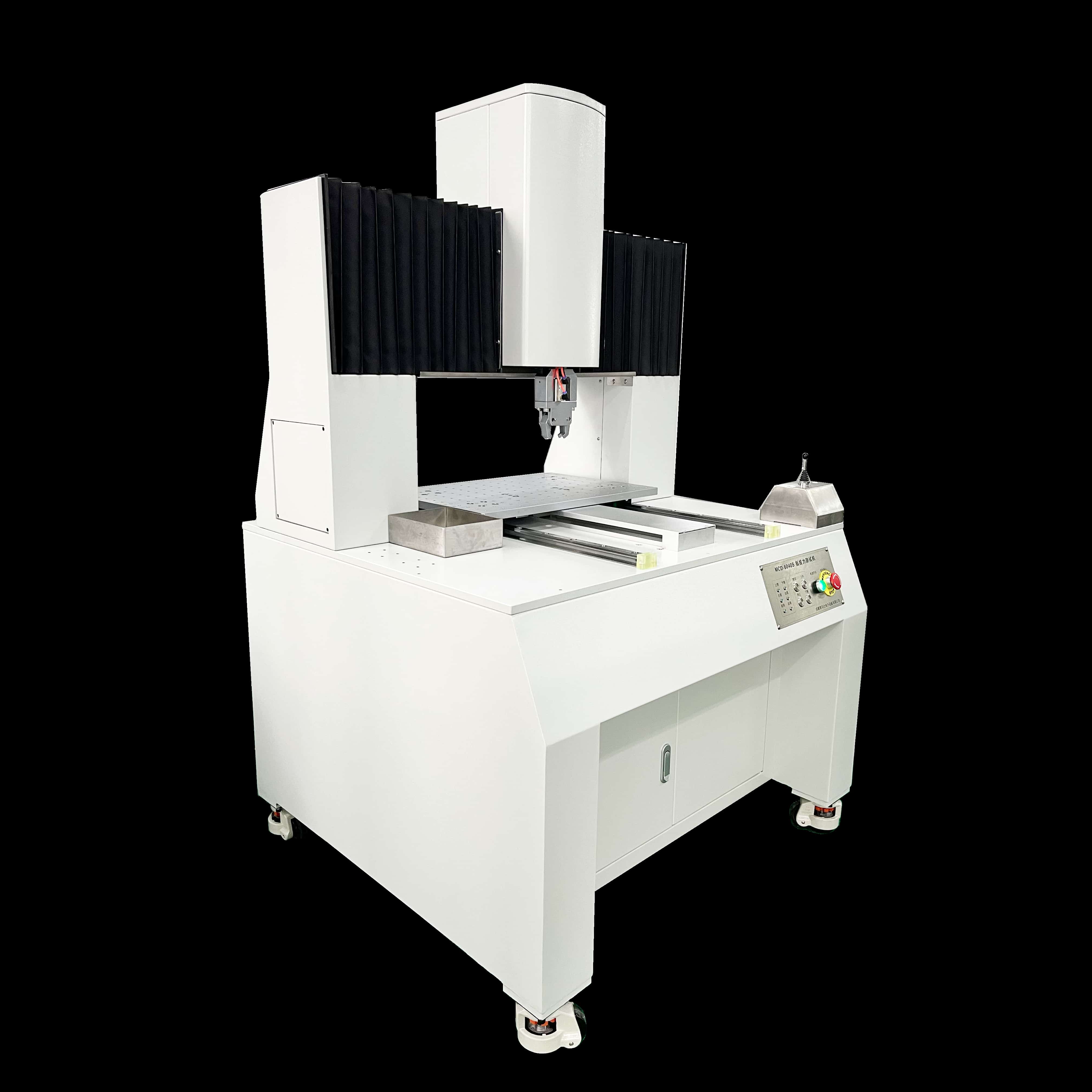

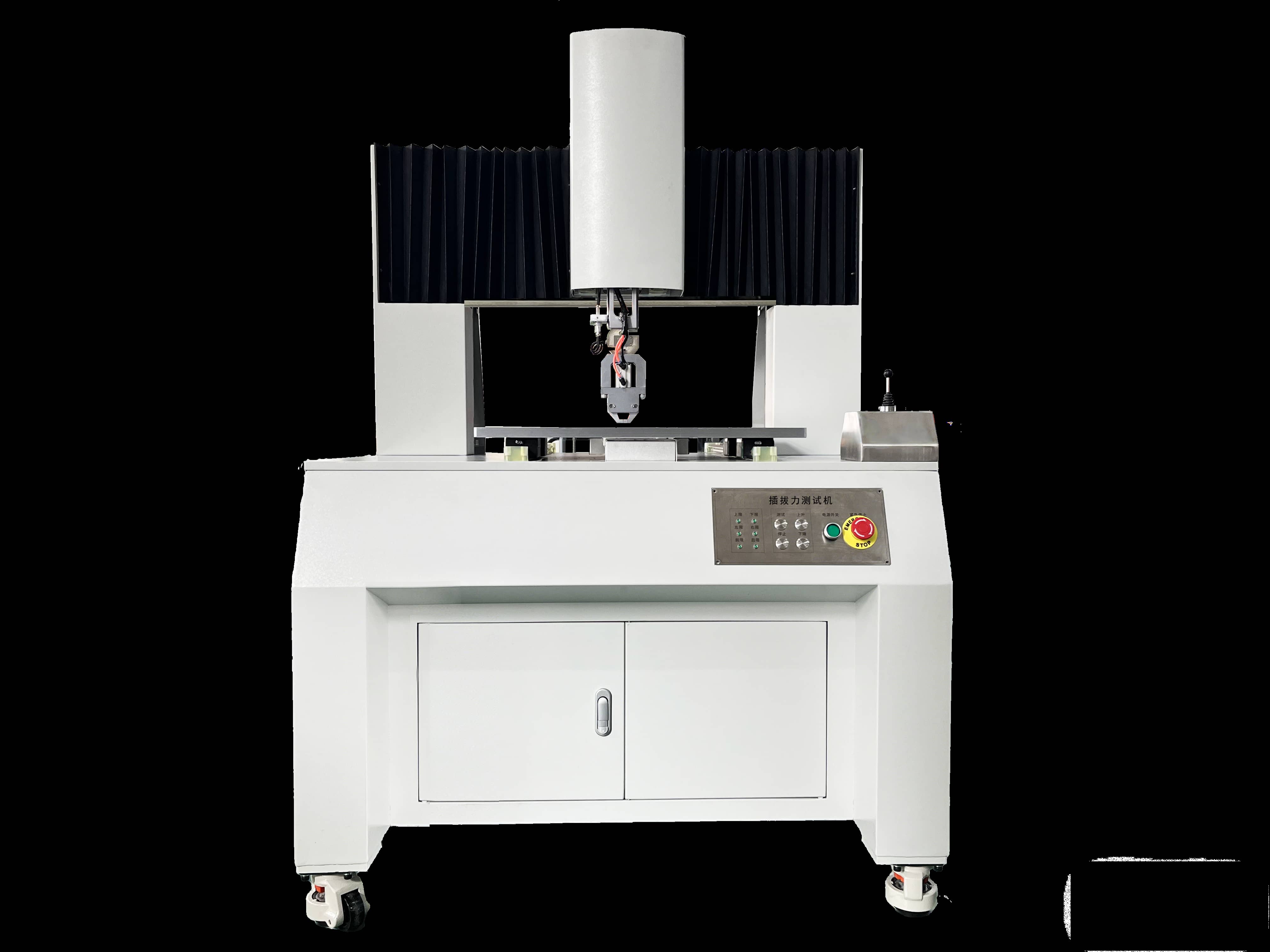

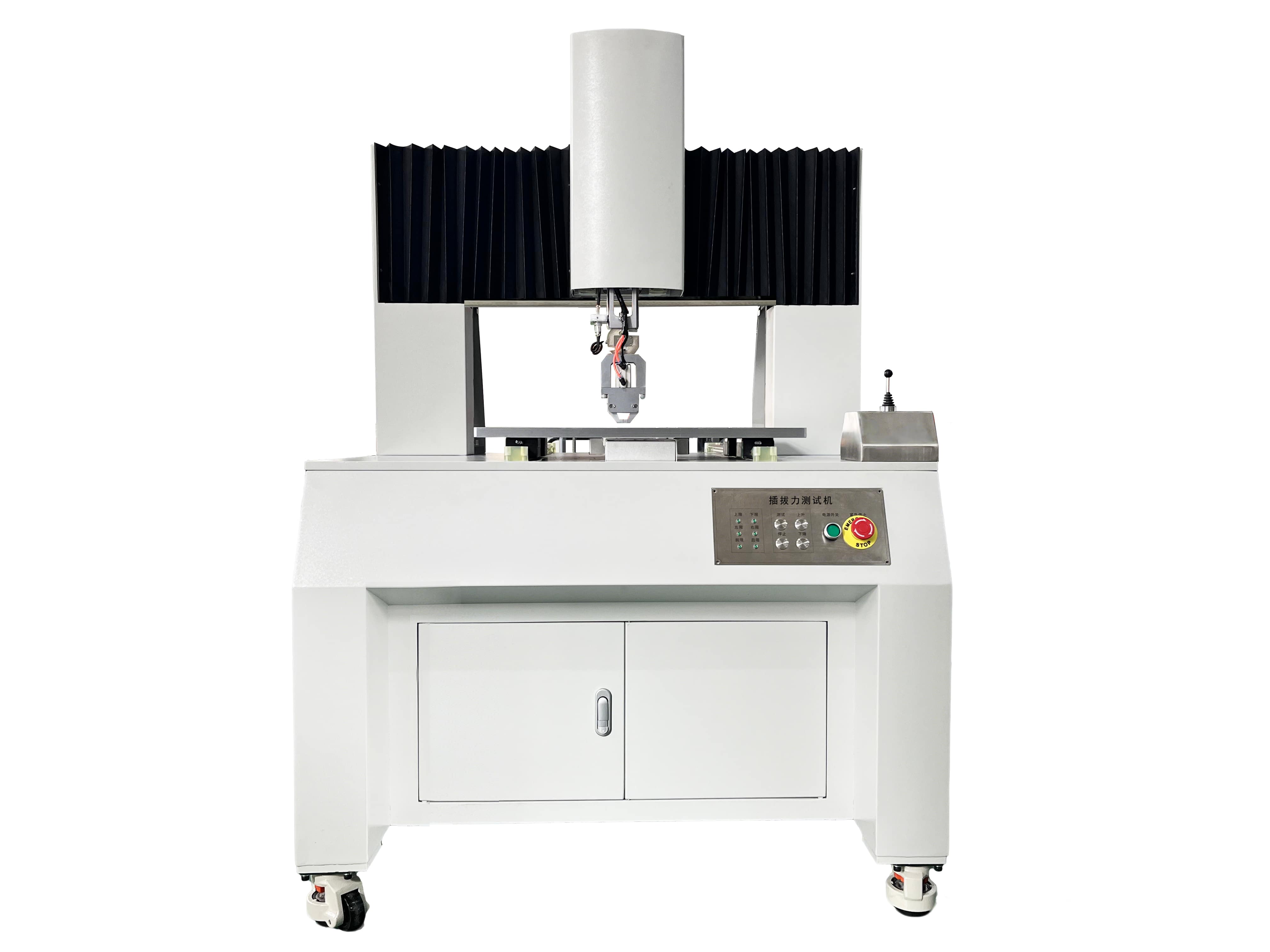

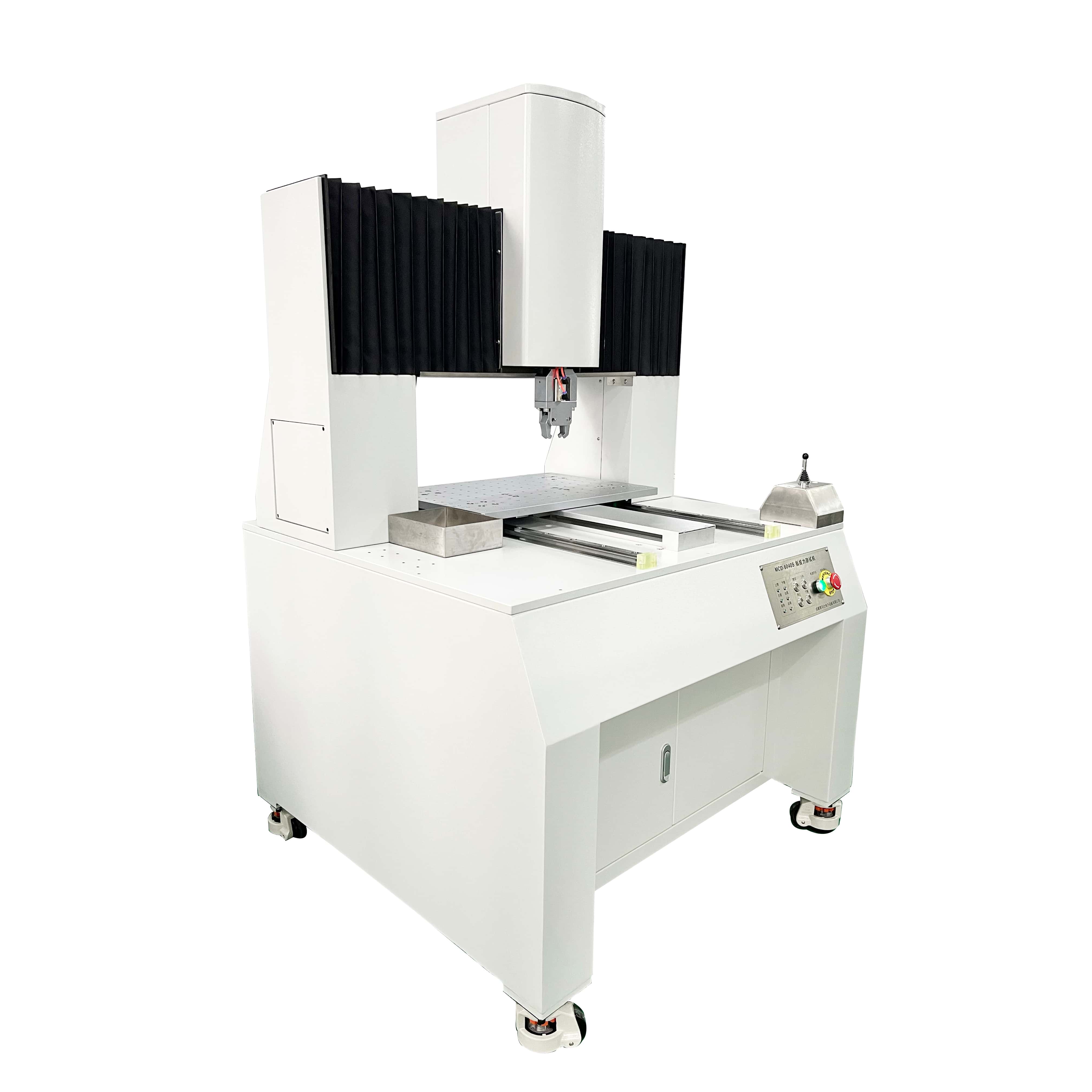

Fully automatic insertion and withdrawal force testing machine (three-axis type)
Model: TH - 5315S
| Advantages |
Test item: This equipment is suitable for comprehensive inspection tests of insertion and extraction force, elasticity, resistance conduction for connectors, screens, notebooks, and whole-panel switches. It has accurate positioning and good repeatability, avoiding the impact on test results due to inaccurate alignment caused by personnel fatigue.
|
Applications |

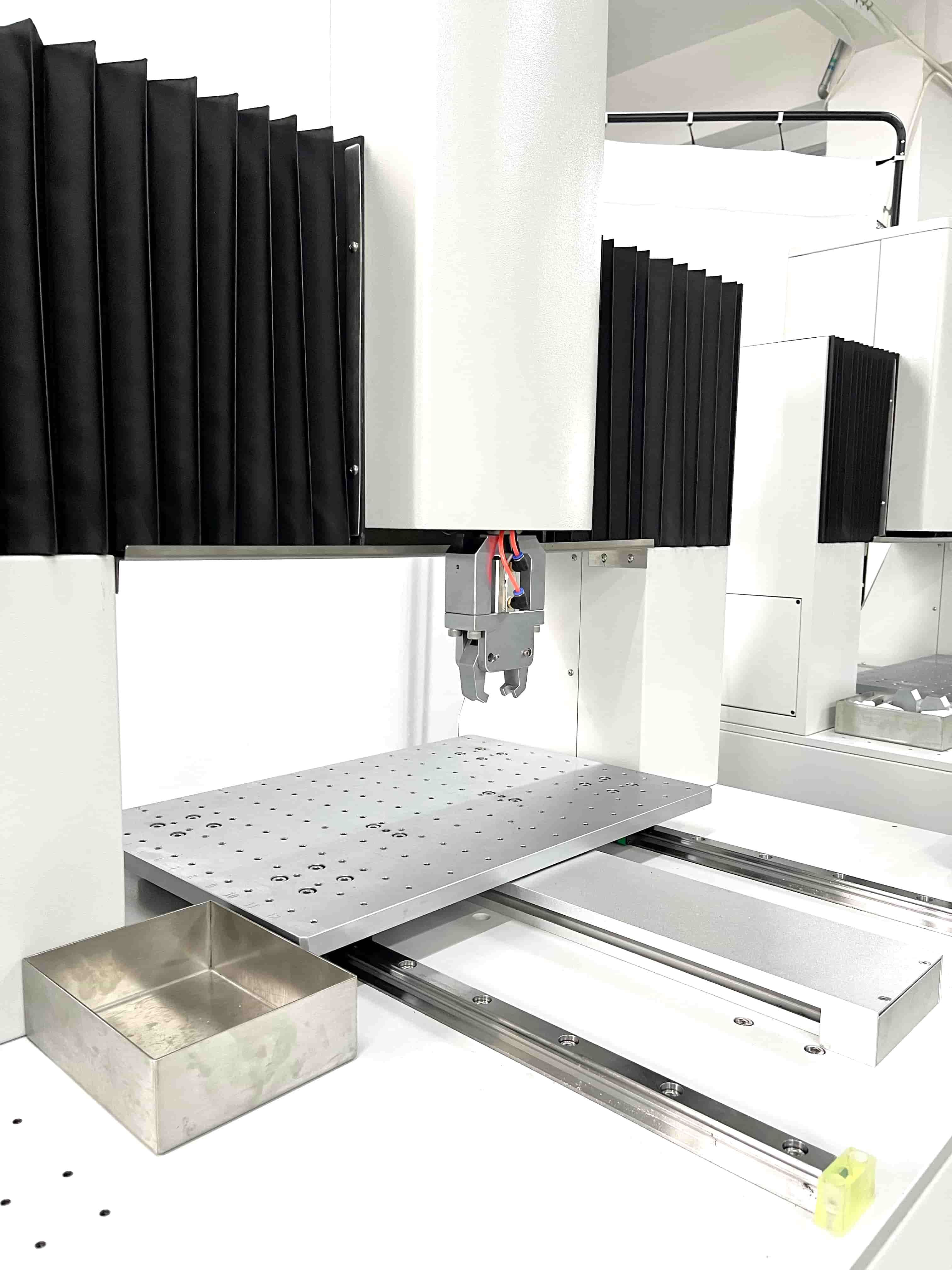

TH-5315S is suitable for comprehensive inspection tests of insertion and extraction force, elasticity, resistance conduction for connectors, screens, notebooks, and whole-panel switches. It has accurate positioning and good repeatability, avoiding the impact on test results due to inaccurate alignment caused by personnel fatigue. Multiple product models can be stored, facilitating multi-model testing. There is an NG alert function to mark the positions of NG products. The barcode import function can be purchased, supporting MES data upload and export. All three axes adopt TBI ball screws from Taiwan, with high precision and long service life. The motors use Japanese Panasonic servo motors. The software has a Chinese interface that is easy to operate, and can store all reports and generate force curve graphs.
| Test Types |
1. Supports both manual and automatic operation modes:
It has all the functions of a single-axis curve instrument. In manual mode, it can measure a single or multiple key positions one by one or continuously; in automatic mode, the instrument automatically tests according to the preset coordinates, completing the test in one step and featuring a warning light reminder function, eliminating the need for manual time-wasting monitoring.
2. Supports manual coordinate input and CAD coordinate import:
Coordinates can be manually entered in any order using the joystick or coordinate movement module (suitable for fewer coordinate points or when grouping samples with different specifications); directly import the product's CAD coordinate document (the document must be converted to DXF format), one-click import, convenient and fast.
3. Test adjustment:
You can freely select the type of test force, test items, test speed, etc.;
The upper and lower limits of load and stroke can be set, and the test results will be displayed in green if they are qualified and in red if they are not;
The free grouping function allows you to group coordinates of the same specification into one group, and select different test items for coordinates of different specifications. The test results will be displayed clearly.
4. Breakpoint testing:
If the machine is in continuous testing and you pause it and then start it again, the machine will continue to measure from the key position where it was paused.
| Service |
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model, and a series of service, person, advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convenience.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4. Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
| FAQ |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
